Ever since the release of APEX 18.1, the APEX development team has been adding features which help developers integrate with other cloud services. It started with Social Sign-On which allows you to authenticate APEX users using authentication providers like MS Azure Active Directory (AKA Office 365), Google, Facebook etc. Having implemented MS Azure AD sign-on with APEX for several clients, we looked at what other services from the Office 365 suite could be integrated with APEX. In this post, I will explore three possibilities and explain why you may find them useful. I am not going to get into step-by-step detail here just raise awareness and inspire ideas.
Background

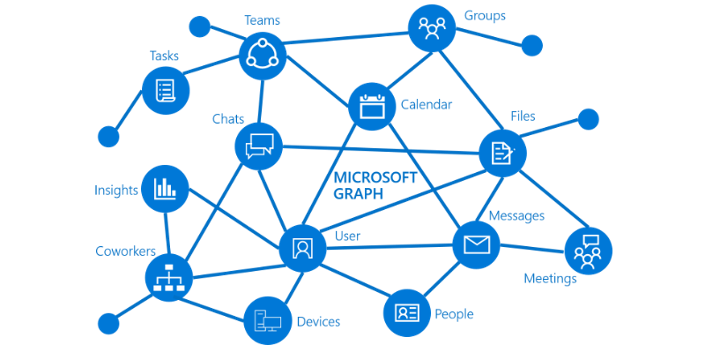

Microsoft Office has an overwhelming share of the Cloud based corporate email market and a significant share of the Cloud based corporate office suite market. It is the Go-To collaboration technology for most large companies. Being able to interact with MS Office 365 is becoming essential for many business workflows. The corner stone for integrating with Office 365 is Microsoft’s Graph API. The MS Graph API provides a unified REST interface that you can use to programmatically interact with the many services contained in the Microsoft Office 365 suite. Having a unified interface makes working with the MS Graph API much easier for developers. Once you get the hang of one API, you are halfway there to understanding all of them.
Tip: Check out the MS Graph Explorer to try out the MS Graph APIs.
Tip: Check out the MS Graph Explorer to try out the MS Graph APIs.
Azure Active Directory ‘App registrations’
Before you dive into the code, you will need to make yourself familiar with some aspects of Microsoft Azure Active Directory, specifically, ‘App registrations’. An App registration is set of configurations that control things like which users/domains can login to your App and what permissions your application has (e.g., read or write files to SharePoint).

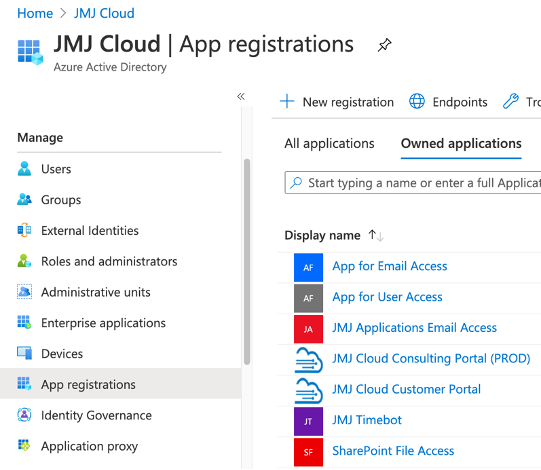

For example, here is a list of Applications Registrations we have at JMJ Cloud.
For example, here is a list of Applications Registrations we have at JMJ Cloud.
API permissions

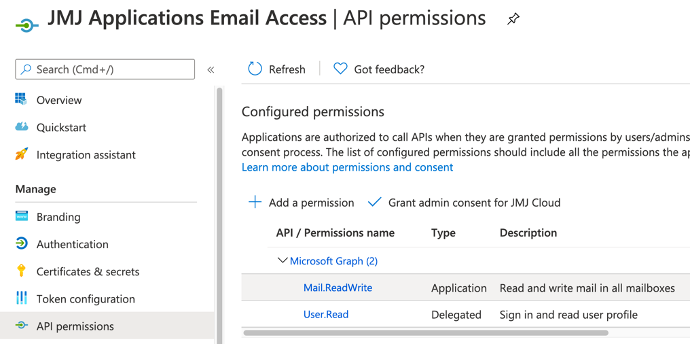

API permissions allow users of the ‘App registration’ to perform certain actions with Office 365 services. Here is an example of ‘API permissions’ which are used by one of our internal APEX applications to automatically process inbound email.
API permissions allow users of the ‘App registration’ to perform certain actions with Office 365 services. Here is an example of ‘API permissions’ which are used by one of our internal APEX applications to automatically process inbound email.
These types of permissions (Application permissions) are global to your whole Office 365 tenant. For the above example, this means you can read and write email for any user.

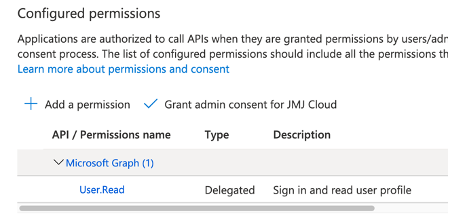

The below permissions are utilized for an App registration that is used purely for Authenticating users into our internal applications. These are ‘Delegated permissions’ and are specific to each logged in user. This means that you can only perform actions in Office 365 on behalf of the logged in user.
The below permissions are utilized for an App registration that is used purely for Authenticating users into our internal applications. These are ‘Delegated permissions’ and are specific to each logged in user. This means that you can only perform actions in Office 365 on behalf of the logged in user.
‘Application (client) ID’ and a ‘Client secret’
When you create an App registration, Microsoft generates a ‘Application (client) ID’ and you can then generate one or more ‘Client secrets’. The combination of a ‘Application (client) ID’ and a ‘Client secret’ is used by APEX to get a token which is required to call the MS Graph APIs. APEX has you covered here because it automatically keeps track of tokens (and their expirations) and fetches a new one when it needs to.
Securing ‘App registrations’
Once someone has the ‘Application (client) ID’ and a ‘Client secret’, they can effectively perform any actions allowed in the ‘API permissions’ section. It is a good idea to create separate App registrations for each Office 365 service you want to access (SharePoint, Email, Sign-On etc.). This way if the credentials for one App registration were to get into the wrong hands, the damage is limited to that one service.
Once you have created the appropriate App registrations in Azure AD, you can get started configuring APEX to integrate with Office 365.
When you create an App registration, Microsoft generates a ‘Application (client) ID’ and you can then generate one or more ‘Client secrets’. The combination of a ‘Application (client) ID’ and a ‘Client secret’ is used by APEX to get a token which is required to call the MS Graph APIs. APEX has you covered here because it automatically keeps track of tokens (and their expirations) and fetches a new one when it needs to.
Securing ‘App registrations’
Once someone has the ‘Application (client) ID’ and a ‘Client secret’, they can effectively perform any actions allowed in the ‘API permissions’ section. It is a good idea to create separate App registrations for each Office 365 service you want to access (SharePoint, Email, Sign-On etc.). This way if the credentials for one App registration were to get into the wrong hands, the damage is limited to that one service.
Once you have created the appropriate App registrations in Azure AD, you can get started configuring APEX to integrate with Office 365.

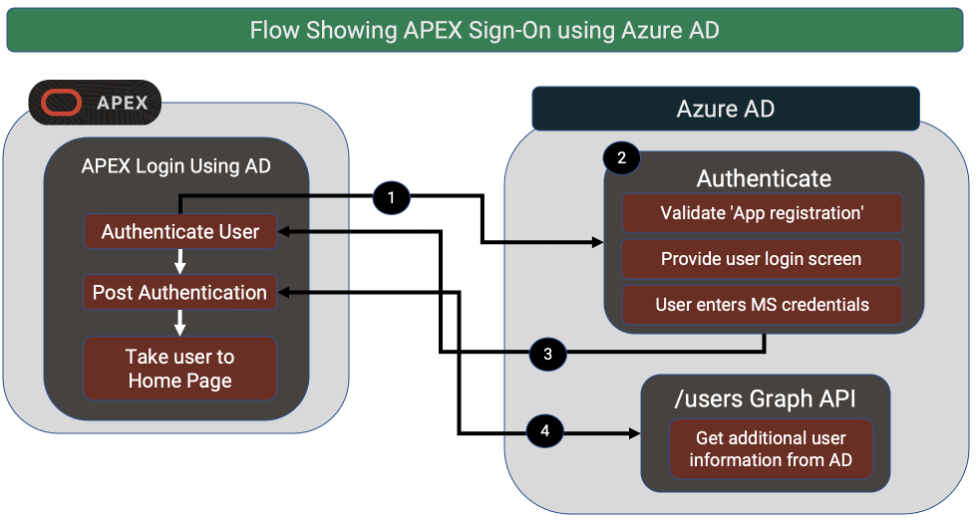

Sign-On to APEX with MS Azure AD

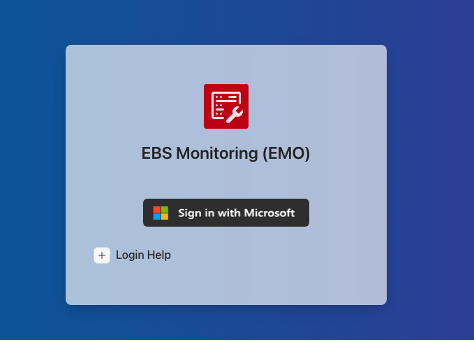

This is perhaps the easiest way to get started with APEX and the MS Graph APIs. It also offers arguably the biggest bang for the buck. These days, most users do not expect to have to remember different passwords for different applications. Being able to have users login to your APEX applications using their Office 365 credentials adds credibility and reduces friction to your application. The ability to do this in APEX is made possible by APEX Social Sign-on. Social Sign-on allows you do declaratively configure an APEX authentication scheme to use any number of OAuth2 Providers (including Active Directory). Also, don’t forget that APEX allows you to have multiple Authentication schemes. So, if it makes sense, you can offer users a choice of signing-in with their Office 365 credentials as well as their credentials from other providers such as Google, Facebook and Okta.
APEX Authentication Scheme

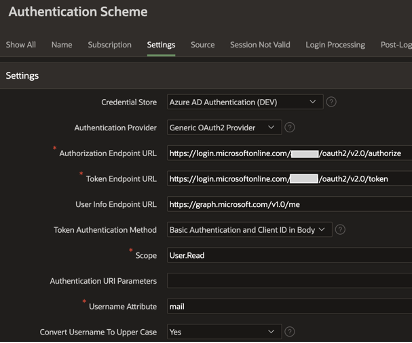

Here is a screen shot of an example APEX Authentication Scheme used for authenticating users using their Office 365 Credentials.
Here is a screen shot of an example APEX Authentication Scheme used for authenticating users using their Office 365 Credentials.
APEX Credential Store / Web Credentials

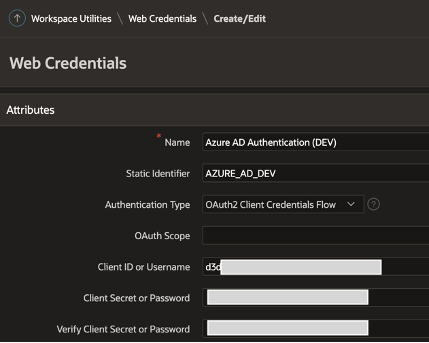

A key part of the above Authentication scheme is the ‘Credential Store’ entry. BTW, ‘Credential Store’ was renamed to ‘Web Credentials’ in APEX 20.2 so you may see me use them interchangeably in this post. In the context of Office 365, Web Credentials store the Client ID and Client Secret that APEX uses to link your Authentication scheme to a specific Azure AD ‘App registration’.
A key part of the above Authentication scheme is the ‘Credential Store’ entry. BTW, ‘Credential Store’ was renamed to ‘Web Credentials’ in APEX 20.2 so you may see me use them interchangeably in this post. In the context of Office 365, Web Credentials store the Client ID and Client Secret that APEX uses to link your Authentication scheme to a specific Azure AD ‘App registration’.
Authorization
When using a third-party authentication provider, you need to be extra careful. If you only create an Authentication scheme, you are essentially giving anyone with an Office 365 account the ability to sign-in to your application. You need to also include APEX Authorization scheme(s) which makes(s) sure users are allowed to access your application and also define what they are allowed to do if they are allowed in.
When using a third-party authentication provider, you need to be extra careful. If you only create an Authentication scheme, you are essentially giving anyone with an Office 365 account the ability to sign-in to your application. You need to also include APEX Authorization scheme(s) which makes(s) sure users are allowed to access your application and also define what they are allowed to do if they are allowed in.
SharePoint & OneDrive
Most APEX Applications need some form of file storage and there are many Cloud object/file storage options. While SharePoint or OneDrive are not necessarily the best cloud file storage solutions, they are used extensively by business users who are familiar with the UI and search capabilities. Also, unlike services like AWS S3 or Oracle Object Storage, SharePoint & OneDrive automatically index documents so the document content can be searched via the SharePoint & OneDrive UIs. You can even call Graph APIs to search the content of documents and return a list of matching documents for your own UI. Storing files in SharePoint allows you to delegate security for these files to Office 365. You can decide which users have access to which files using standard Office 365 functionality. You can even create single use or time expired links to files and share them outside your organization.
Example Use Cases
Azure AD App registration
You will need to start by creating an App registration in Azure AD and make sure you assign the ‘Sites.ReadWrite.All’ permission. This permission will allow you full access to traverse the folder structure, create folders, upload, and download files etc.
APEX Web Credentials

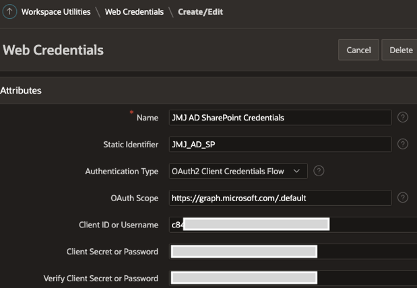

As with sign-on, you will need to create Web Credentials that provide APEX the information it needs to access the ‘App registration’ and authenticate you so you can call the Graph APIs.
- Uploading and downloading file Attachments to and from SharePoint in your APEX Application. In this scenario you control the entire interaction with SharePoint from APEX.
- Storing Oracle e-Business Suite attachments (instead of bloating your database by storing them in the database). In this scenario you intercept EBS and store files in SharePoint instead of the FND_LOBS table. Files appear to the user as an attachment and they are taken to SharePoint when they want to download a file.
Azure AD App registration
You will need to start by creating an App registration in Azure AD and make sure you assign the ‘Sites.ReadWrite.All’ permission. This permission will allow you full access to traverse the folder structure, create folders, upload, and download files etc.
APEX Web Credentials
As with sign-on, you will need to create Web Credentials that provide APEX the information it needs to access the ‘App registration’ and authenticate you so you can call the Graph APIs.
SharePoint and OneDrive Graph APIs
The MS Graph APIs you use for SharePoint and OneDrive are pretty much the same. There is an extra step in SharePoint to get from the SharePoint Site to the Documents folder (Drive) for the SharePoint Site. Once you have the Drive ID, the steps for traversing folders, uploading, and downloading files are the same for both. MS Graph APIs allow you to do the following:

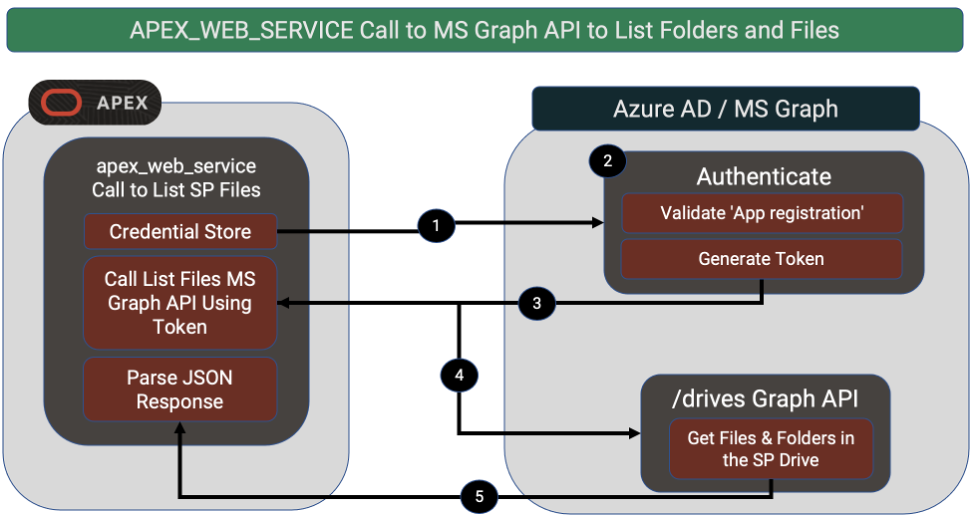

Calling MS Graph APIs from APEX
Interacting with SharePoint & OneDrive files from APEX is trickier than setting up single sign-on, but not much.
You have a couple of options; one is to use APEX ‘REST Data Sources’ and the other is to call the apex_web_service PL/SQL APIs. Creating a ‘REST Data Source’ is the best option, especially for data that is flat (e.g., a list of folders or a list of emails). One key advantage is that ‘REST Data Sources’ can be used as data sources declaratively throughout APEX (IRs, IGs, Charts, LOVs etc.).
If the payload from Microsoft contains embedded arrays, then you can use apex_web_service to get the JSON then parse the JSON and traverse the arrays yourself.
The function below shows an example of using apex_web_service to call an MS Graph API. The function fetches a file from SharePoint into a BLOB in PL/SQL. Developers do not need to worry about fetching tokens etc. from Microsoft. APEX uses the referenced Credential Store (identified by ‘p_credential_static_id’) to automatically get a token from Microsoft (if it needs to). The token is then automatically passed to the Graph API.
The MS Graph APIs you use for SharePoint and OneDrive are pretty much the same. There is an extra step in SharePoint to get from the SharePoint Site to the Documents folder (Drive) for the SharePoint Site. Once you have the Drive ID, the steps for traversing folders, uploading, and downloading files are the same for both. MS Graph APIs allow you to do the following:
- List Files and Folders
- Create and Delete Folders
- Upload and Delete Files
- Get a File
Calling MS Graph APIs from APEX
Interacting with SharePoint & OneDrive files from APEX is trickier than setting up single sign-on, but not much.
You have a couple of options; one is to use APEX ‘REST Data Sources’ and the other is to call the apex_web_service PL/SQL APIs. Creating a ‘REST Data Source’ is the best option, especially for data that is flat (e.g., a list of folders or a list of emails). One key advantage is that ‘REST Data Sources’ can be used as data sources declaratively throughout APEX (IRs, IGs, Charts, LOVs etc.).
If the payload from Microsoft contains embedded arrays, then you can use apex_web_service to get the JSON then parse the JSON and traverse the arrays yourself.
The function below shows an example of using apex_web_service to call an MS Graph API. The function fetches a file from SharePoint into a BLOB in PL/SQL. Developers do not need to worry about fetching tokens etc. from Microsoft. APEX uses the referenced Credential Store (identified by ‘p_credential_static_id’) to automatically get a token from Microsoft (if it needs to). The token is then automatically passed to the Graph API.
At the time of writing, Microsoft limits file uploads to a maximum of 60MB in size. Also, if you are uploading files larger than 4MB, then you need to upload your file in chunks.
Processing Email
Email is still the most familiar user interface for most users. According to statista.com , there are over 300 billion emails sent every day. Because of this, allowing users to interact with your system using email can be very powerful. Being able to process email automatically, requires that you have programmatic access to the email inbox. MS Graph provides all the APIs you need to read and write email from Office 365.
Example Use Cases
Note: Performing actions in your system based on the receipt of an email should be done with great care. You must verify the email sender, check that they are an authorized user of your application and that they have access to perform the requested action.
Azure AD App registration
You will need to create an App registration in Azure AD and make sure you assign the ‘Mail.Read’ permission. This permission will allow you to read email from any inbox.
APEX Web Credentials
The APEX Web Credential will look very similar to the one you created for SharePoint and OneDrive, except you will need to use the client and client secret from the App registration you created for handling email.
Email Graph APIs
There are MS Graph APIs that allow you to do the following with email:
Example Use Cases
- APEX ticketing system - Allow users to create and update tickets in your ticketing system by sending email to an email account dedicated to processing tickets. Use APEX 20.2 Automations functionality to poll the Inbox every five minutes and create/update the appropriate tickets.
- Information requests - Allow users to send an email to an email account dedicated to handling requests for information from your ERP system. Use APEX automations to poll the account and fetch requested data from your ERP and respond with an email containing the requested information.
Note: Performing actions in your system based on the receipt of an email should be done with great care. You must verify the email sender, check that they are an authorized user of your application and that they have access to perform the requested action.
Azure AD App registration
You will need to create an App registration in Azure AD and make sure you assign the ‘Mail.Read’ permission. This permission will allow you to read email from any inbox.
APEX Web Credentials
The APEX Web Credential will look very similar to the one you created for SharePoint and OneDrive, except you will need to use the client and client secret from the App registration you created for handling email.
Email Graph APIs
There are MS Graph APIs that allow you to do the following with email:
- Get a list of emails
- See who sent the email, who was on the CC list etc.
- Get the full body of an email
- Get email attachments
- Follow email ‘conversations’
- Send email
MS Graph API Considerations
There are a few things you should know before you get started with MS Graph APIs.
Make Use of API Query Parameters
There are several query parameters that can be used to influence the response you get from MS Graph APIs. Here is a screen shot showing a call to the GET email API where we are passing a number of these parameters.
Make Use of API Query Parameters
There are several query parameters that can be used to influence the response you get from MS Graph APIs. Here is a screen shot showing a call to the GET email API where we are passing a number of these parameters.
- $select allows you to just select the fields you need. By selecting just, the fields you need, you can dramatically reduce the size of the response payload and the time it will take you to parse it.
- $filter allows you to filter the data set that is returned. In this case we are fetching only emails received since ‘2020-09-01T11:32:44Z’. This can also dramatically reduce the size of the response payload returned.
- @orderby allows you to pre-sort the data returned by the API.
- @top allows you to limit the response to the top X records. This is another mechanism you can use to limit the size of the response.
Utilize Delta Queries
Delta Query enables applications to discover newly created, updated, or deleted entities without performing a full read of the target resource with every request. This can be especially useful for things like polling for new emails created since the last time you checked.
Understand Limits and Throttling
Microsoft does impose certain limits and will throttle access if you exceed them.
For example, at time of writing, the Outlook mail API limits are as follows:
- 10,000 API requests in a 10-minute period
- 4 concurrent requests
- 15 megabytes (MB) upload (PATCH, POST, PUT) in a 30 second period
One More Thing
APEX 20.2 introduced ‘REST Source Connector Plug-Ins’. These allows you to create plugins to make interactions between APEX components like Interactive Reports and REST web services seamless. Search and pagination functionality in an Interactive Report pass context information to your plugin which can execute the appropriate REST calls (search, get next page etc.). This will make using an IR which is based on a REST service just as functional as using an IR on a local database table! For additional details see the APEX 20.2 release Blog Post. Plugin library for MS Graph anyone?
Conclusion
I realize I have covered a lot in this post and to be honest, I have barely scratched the surface of what the MS Graph APIs are capable of. There are many other Office 365 services that you can integrate with including Calendar, To Do, OneNote, Users & Groups, Planner and more. As the APEX development team continues to add native REST integration capabilities, integrating with well thought out APIs like MS Graph continues to become easier and easier. A world of data and cloud services are available to you, many of which can be consumed by APEX in a completely declarative manner.
